Cisco Catalyst 9000 无线和交换产品系列
借助交换机，改造网络，应对未来的混合办公挑战
简介
Catalyst 9000 交换产品系列采用多功能设计，操作更为灵活。全新 Catalyst 9000X 型号可提供更安全的体验，速度大幅提速，扩展能力不在话下。
优势
Catalyst 9000 系列平台具有以下优点：
- 推动工作场所转型，助力混合办公，部署功能强大的平台，提供当今混合办公所需的带宽、速度和规模。
- 由内而外保护您的网络,利用增强型 PoE 供电和先进的 AI/ML，随时随地实现持续的零信任安全。
- 您的网络由您做主！利用 Cisco Catalyst Center 或 Cisco Meraki Dashboard 在本地或云端管理网络，打造卓越的体验。
- 打造网络，实现更可持续的未来,使用网络提升能源效率，保障工作场所健康，为实现更智能、更可持续的楼宇奠定基础。
应用
Cisco Catalyst 9200 系列交换机
作为思科网络云的基础构建块，Catalyst 9200系列交换机通过利用其他供应商无法提供的智能、自动化和人工专业知识，
帮助客户简化复杂性、优化IT并降低运营成本，无论您处于基于意图的网络旅程的哪个阶段。
Catalyst 9200系列交换机具有完整的PoE+功能、电源和风扇冗余、堆叠带宽高达160 Gbps、模块化上行链路、
第3层功能支持和冷配线，是业界无与伦比的解决方案，具有差异化的弹性和渐进式架构，可实现经济高效的分支机构接入。
Catalyst 9200系列交换机还提供CLI、Cisco Catalyst Center（前身为Cisco DNA Center）本地管理或
Meraki 智能管理平台监控方案选择。
适用于小型分支机构和中型园区的非模块化可堆叠交换机，支持企业级接入部署。

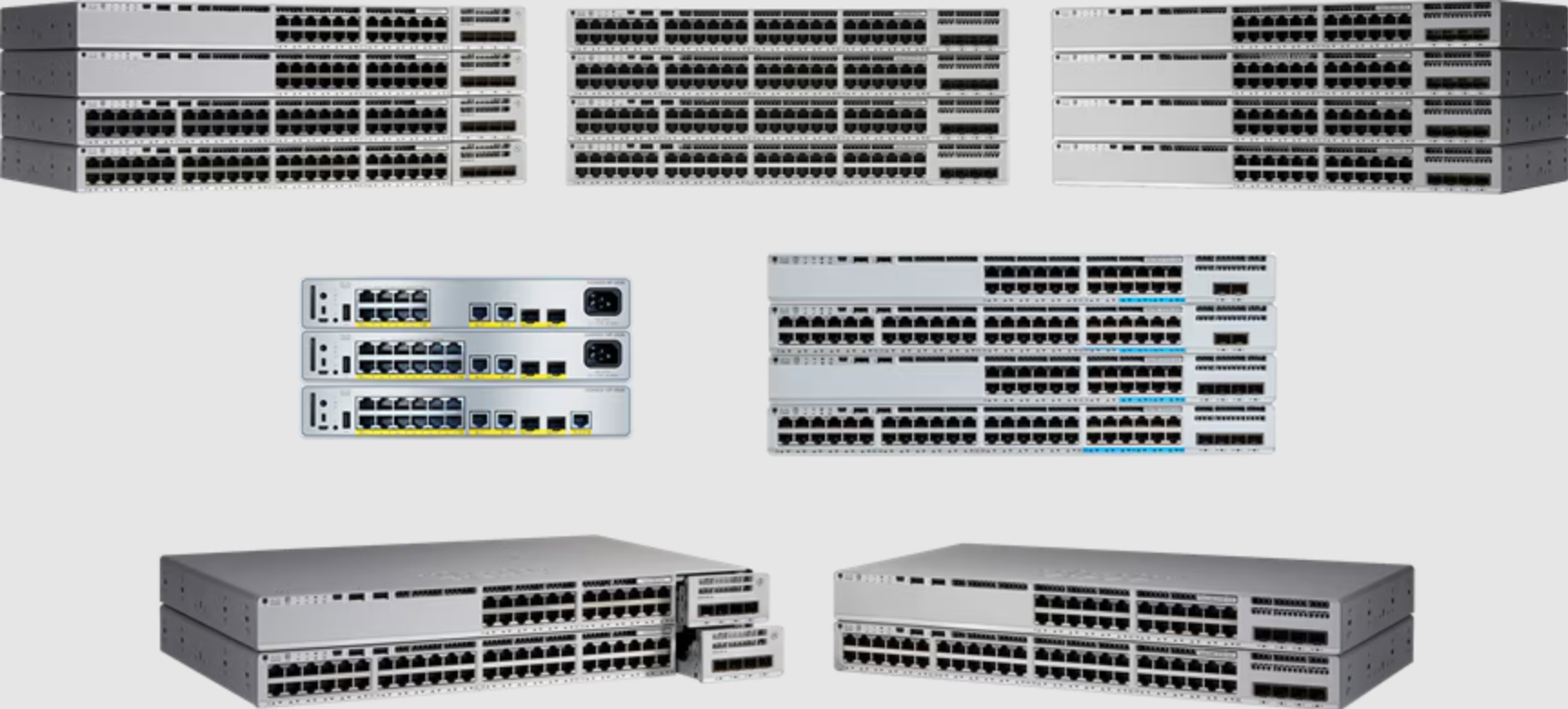

思科 Catalyst 9200L-M (C9200L-M SKU)cloud-managed models 系列交换机 - 通过Meraki Dashboard管理(表1):
| Model | Descrition | Features |
| C9200L-24P-4G-M | 24-port 1GbE PoE+ with 4x 1G fixed uplinks,PWR-C5-600WAC | 24 Ports,Managed via Cisco Meraki Dashboard |
| C9200L-24T-4X-M | 24-port 1 GbE Data with 4x 1G/10G fixed uplinks,PWR-C5-125WAC | 24 Ports,Managed via Cisco Meraki Dashboard |
| C9200L-24P-4X-M | 24-port 1GbE PoE+ with 4x 1G/10G fixed uplinks,PWR-C5-600WAC | 24 Ports,Managed via Cisco Meraki Dashboard |
| C9200L-24PXG-4X-M | 24-port PoE+, 8 mGig(10G/5G/2.5G/1G/100M) with 4x 1G/10G fixed uplinks, PWR-C5-600WAC | 24 Ports,Managed via Cisco Meraki Dashboard |
| C9200L-24PXG-2Y-M | 24-port PoE+, 8 mGig(10G/5G/2.5G/1G/100M) with 2x 1G/10G/25G fixed uplinks,PWR-C5-600WAC | 24 Ports,Managed via Cisco Meraki Dashboard |
| C9200L-48T-4G-M | 48-port 1 GbE Data with 4x 1G fixed uplinks,PWR-C5-125WAC | 48 Ports,Managed via Cisco Meraki Dashboard |
| C9200L-48P-4G-M | 48-port 1GbE PoE+ with 4x 1G fixed uplinks,PWR-C5-1KWAC | 48 Ports,Managed via Cisco Meraki Dashboard |
| C9200L-48PL-4G-M | 48-port 1GbE partial PoE+ with 4x 1G fixed uplinks,PWR-C5-600WAC | 48 Ports,Managed via Cisco Meraki Dashboard |
| C9200L-48T-4X-M | 48-port 1 GbE Data with 4x 1G/10G fixed uplinks, PWR-C5-125WAC | 48 Ports,Managed via Cisco Meraki Dashboard |
| C9200L-48P-4X-M | 48-port 1GbE PoE+ with 4x 1G/10G fixed uplinks,PWR-C5-1KWAC | 48 Ports,Managed via Cisco Meraki Dashboard |
| C9200L-48PL-4X-M | 48-port 1GbE partial PoE+ with 4x 1G/10G fixed uplinks,PWR-C5-600WAC | 48 Ports,Managed via Cisco Meraki Dashboard |
| C9200L-48PXG-4X-M | 48-port PoE+, 12 mGig(10G/5G/2.5G/1G/100M) with 4x 1G/10G fixed uplinks,PWR-C5-1KWAC | 48 Ports,Managed via Cisco Meraki Dashboard |
| C9200L-48PXG-2Y-M | 48-port PoE+, 8 mGig(10G/5G/2.5G/1G/100M) with 2x 1G/10G/25G fixed uplinks,PWR-C5-1KWAC | 48 Ports,Managed via Cisco Meraki Dashboard |
思科 Catalyst 9200 系列交换机 - (C9200 SKU & C9200L SKU & C9200CX SKU)(表2):
| Model | Descrition | Features |
| C9200-24T-A | Catalyst 9200 24-port Data Switch, Network Advantage | 模块化上行链路型号 (C9200 SKU) |
| C9200-24T-E | Catalyst 9200 24-port Data Switch, Network Essentials | 模块化上行链路型号 (C9200 SKU) |
| C9200-24P-A | Catalyst 9200 24-port PoE+ Switch, Network Advantage | 模块化上行链路型号 (C9200 SKU) |
| C9200-24P-E | Catalyst 9200 24-port PoE+ Switch. Network Essentials | 模块化上行链路型号 (C9200 SKU) |
| C9200-24PB-A | Catalyst 9200 24-port PoE+, enhanced VRF, Network Advantage | 模块化上行链路型号 (C9200 SKU) |
| C9200-24PXG-E | Catalyst 9200 24-port 8xmGig, 16x1G, PoE+, Network Essentials | 模块化上行链路型号 (C9200 SKU) |
| C9200-24PXG-A | Catalyst 9200 24-port 8xmGig, 16x1G, PoE+, Network Advantage | 模块化上行链路型号 (C9200 SKU) |
| C9200-48T-A | Catalyst 9200 48-port Data Switch, Network Advantage | 模块化上行链路型号 (C9200 SKU) |
| C9200-48T-E | Catalyst 9200 48-port Data Switch, Network Essentials | 模块化上行链路型号 (C9200 SKU) |
| C9200-48P-A | Catalyst 9200 48-port PoE+ Switch, Network Advantage | 模块化上行链路型号 (C9200 SKU) |
| C9200-48P-E | Catalyst 9200 48-port PoE+ Switch, Network Essentials | 模块化上行链路型号 (C9200 SKU) |
| C9200-48PL-A | Catalyst 9200 48-Port partial PoE+ Switch, Network Advantage | 模块化上行链路型号 (C9200 SKU) |
| C9200-48PL-E | Catalyst 9200 48-Port partial PoE+ Switch, Network Essentials | 模块化上行链路型号 (C9200 SKU) |
| C9200-48PB-A | Catalyst 9200 48-port PoE+, enhanced VRF, Network Advantage | 模块化上行链路型号 (C9200 SKU) |
| C9200-48PXG-E | Catalyst 9200 48-port 8xmGig, 40x1G, PoE+, Network Essentials | 模块化上行链路型号 (C9200 SKU) |
| C9200-48PXG-A | Catalyst 9200 48-port 8xmGig, 40x1G, PoE+, Network Advantage | 模块化上行链路型号 (C9200 SKU) |
| C9200L-24T-4G-A | Catalyst 9200L 24-port Data 4x1G uplink Switch, Network Advantage | 非模块化上行链路型号 (C9200L SKU) |
| C9200L-24T-4G-E | Catalyst 9200L 24-port Data 4x1G uplink Switch, Network Essentials | 非模块化上行链路型号 (C9200L SKU) |
| C9200L-24P-4G-A | Catalyst 9200L 24-port PoE+ 4x1G uplink Switch, Network Advantage | 非模块化上行链路型号 (C9200L SKU) |
| C9200L-24P-4G-E | Catalyst 9200L 24-port PoE+ 4x1G uplink Switch, Network Essentials | 非模块化上行链路型号 (C9200L SKU) |
| C9200L-48T-4G-A | Catalyst 9200L 48-port Data 4x1G uplink Switch, Network Advantage | 非模块化上行链路型号 (C9200L SKU) |
| C9200L-48T-4G-E | Catalyst 9200L 48-port Data 4x1G uplink Switch, Network Essentials | 非模块化上行链路型号 (C9200L SKU) |
| C9200L-48P-4G-A | Catalyst 9200L 48-port PoE+ 4x1G uplink Switch, Network Advantage | 非模块化上行链路型号 (C9200L SKU) |
| C9200L-48P-4G-E | Catalyst 9200L 48-port PoE+ 4x1G uplink Switch, Network Essentials | 非模块化上行链路型号 (C9200L SKU) |
| C9200L-48PL-4G-A | Catalyst 9200L 48-port partial PoE+ 4x1G uplink Switch, Network Advantage | 非模块化上行链路型号 (C9200L SKU) |
| C9200L-48PL-4G-E | Catalyst 9200L 48-port partial PoE+ 4x1G uplink Switch, Network Essentials | 非模块化上行链路型号 (C9200L SKU) |
| C9200L-24T-4X-A | Catalyst 9200L 24-port Data 4x10G uplink Switch, Network Advantage | 非模块化上行链路型号 (C9200L SKU) |
| C9200L-24T-4X-E | Catalyst 9200L 24-port Data 4x10G uplink Switch, Network Essentials | 非模块化上行链路型号 (C9200L SKU) |
| C9200L-24P-4X-A | Catalyst 9200L 24-port PoE+ 4x10G uplink Switch, Network Advantage | 非模块化上行链路型号 (C9200L SKU) |
| C9200L-24P-4X-E | Catalyst 9200L 24-port PoE+ 4x10G uplink Switch, Network Essentials | 非模块化上行链路型号 (C9200L SKU) |
| C9200L-48T-4X-A | Catalyst 9200L 48-port Data 4x10G uplink Switch, Network Advantage | 非模块化上行链路型号 (C9200L SKU) |
| C9200L-48T-4X-E | Catalyst 9200L 48-port Data 4x10G uplink Switch, Network Essentials | 非模块化上行链路型号 (C9200L SKU) |
| C9200L-48P-4X-A | Catalyst 9200L 48-port PoE+ 4x10G uplink Switch, Network Advantage | 非模块化上行链路型号 (C9200L SKU) |
| C9200L-48P-4X-E | Catalyst 9200L 48-port PoE+ 4x10G uplink Switch, Network Essentials | 非模块化上行链路型号 (C9200L SKU) |
| C9200L-48PL-4X-A | Catalyst 9200L 48-port partial PoE+ 4x10G uplink Switch, Network Advantage | 非模块化上行链路型号 (C9200L SKU) |
| C9200L-48PL-4X-E | Catalyst 9200L 48-port partial PoE+ 4x10G uplink Switch, Network Essentials | 非模块化上行链路型号 (C9200L SKU) |
| C9200L-24PXG-4X-E | Catalyst 9200L 24-port 8xmGig, 16x1G, 4x10G, PoE+, Network Essentials | 非模块化上行链路型号 (C9200L SKU) |
| C9200L-24PXG-4X-A | Catalyst 9200L 24-port 8xmGig, 16x1G, 4x10G, PoE+, Network Advantage | 非模块化上行链路型号 (C9200L SKU) |
| C9200L-48PXG-4X-E | Catalyst 9200L 48-port 12xmGig, 36x1G, 4x10G PoE+, Network Essentials | 非模块化上行链路型号 (C9200L SKU) |
| C9200L-48PXG-4X-A | Catalyst 9200L 48-port 12xmGig, 36x1G, 4x10G PoE+, Network Advantage | 非模块化上行链路型号 (C9200L SKU) |
| C9200L-24PXG-2Y-E | Catalyst 9200L 24-port 8xmGig, 16x1G, 2x25G, PoE+, Network Essentials | 非模块化上行链路型号 (C9200L SKU) |
| C9200L-24PXG-2Y-A | Catalyst 9200L 24-port 8xmGig, 16x1G, 2x25G, PoE+, Network Advantage | 非模块化上行链路型号 (C9200L SKU) |
| C9200L-48PXG-2Y-E | Catalyst 9200L 48-port 8xmGig, 40x1G, 2x25G PoE+, Network Essentials | 非模块化上行链路型号 (C9200L SKU) |
| C9200L-48PXG-2Y-A | Catalyst 9200L 48-port 8xmGig, 40x1G, 2x25G PoE+, Network Advantage | 非模块化上行链路型号 (C9200L SKU) |
| C9200CX-12T-2X2G-E | Catalyst 9200CX 12-port 1G, 2x10G and 3x1G, data, Network Essentials | Compact Models (C9200CX SKU) |
| C9200CX-12T-2X2G-A | Catalyst 9200CX 12-port 1G, 2x10G and 3x1G, data, Network Advantage | Compact Models (C9200CX SKU) |
| C9200CX-12P-2X2G-E | Catalyst 9200CX 12-port 1G, 2x10G and 2x1G, PoE+, Network Essentials | Compact Models (C9200CX SKU) |
| C9200CX-12P-2X2G-A | Catalyst 9200CX 12-port 1G, 2x10G and 2x1G, PoE+, Network Advantage | Compact Models (C9200CX SKU) |
| C9200CX-8P-2X2G-E | Catalyst 9200CX 8-port 1G, 2x10G and 2x1G, PoE+, Network Essentials | Compact Models (C9200CX SKU) |
| C9200CX-8P-2X2G-A | Catalyst 9200CX 8-port 1G, 2x10G and 2x1G, PoE+, Network Advantage | Compact Models (C9200CX SKU) |
| C9200CX-8UXG-2X-E | Catalyst 9200CX 4-port mGig and 4-port 1G, 2x10G, UPOE, Network Essentials | Compact Models (C9200CX SKU) |
| C9200CX-8UXG-2X-A | Catalyst 9200CX 4-port mGig and 4-port 1G, 2x10G, UPOE, Network Advantage | Compact Models (C9200CX SKU) |
| C9200CX-12P-2XGH-E | Catalyst 9200CX 12-port 1G, 2x10G and 2x1G, PoE+, HVDC, Network Essentials | Compact Models (C9200CX SKU) |
| C9200CX-12P-2XGH-A | Catalyst 9200CX 12-port 1G, 2x10G and 2x1G, PoE+, HVDC, Network Advantage | Compact Models (C9200CX SKU) |
| C9200CX-8P-2XGH-E | Catalyst 9200CX 8-port 1G, 2x10G and 2x1G, PoE+, HVDC, Network Essentials | Compact Models (C9200CX SKU) |
| C9200CX-8P-2XGH-A | Catalyst 9200CX 8-port 1G, 2x10G and 2x1G, PoE+, HVDC, Network Advantage | Compact Models (C9200CX SKU) |
| C9200CX-8UXG-2XH-E | Catalyst 9200CX 4-port mGig and 4-port 1G, 2x10G, UPOE, HVDC, Network Essentials | Compact Models (C9200CX SKU) |
| C9200CX-8UXG-2XH-A | Catalyst 9200CX 4-port mGig and 4-port 1G, 2x10G, UPOE, HVDC, Network Advantage | Compact Models (C9200CX SKU) |
*C9200CX系列交换机，是无风扇静音款，不支持堆叠

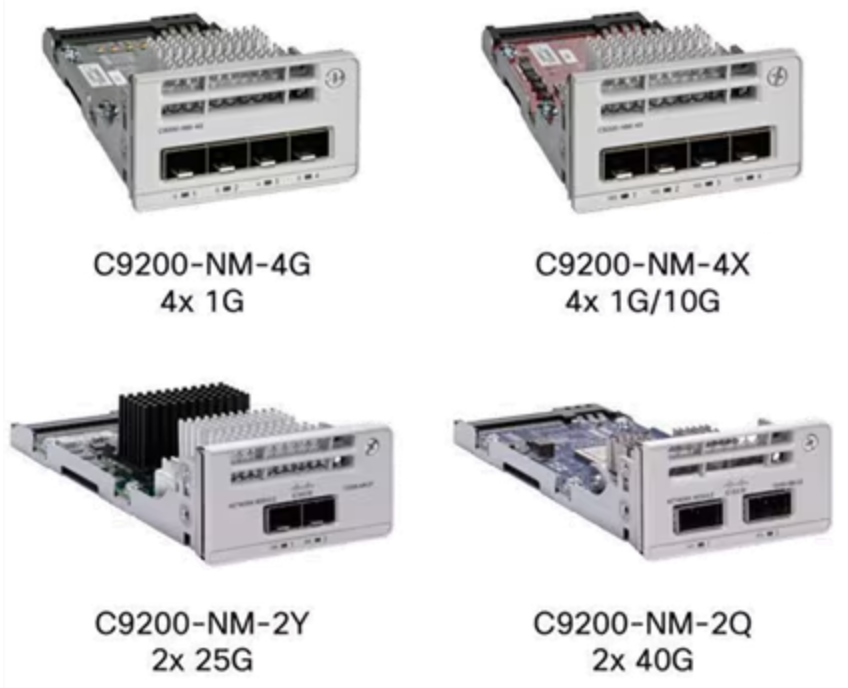

思科 Catalyst 9200 系列交换机 - 网络模块部件和堆叠配件说明：
Cisco Catalyst 9200系列交换机配有模块化或固定上行链路，如表2所示。通过模块化SKU， 现场可更换的网络模块允许从1G到10G及以上的无中断迁移， 从而提供基础设施投资保护。购买交换机时，您可以从表3中描述的网络模块中进行选择。
思科 Catalyst 9200 系列交换机 - 网络模块部件和堆叠配件说明表：(表3):
| 规格 | Descrition |
| 网络模块部件 | |
| C9200-NM-2Y (=) | Catalyst 9200 2 x 25 GE Network Module, spare |
| C9200-NM-2Q (=) | Catalyst 9200 2 x 40GE Network Module, spare |
| C9200-NM-4G (=) | Catalyst 9200 4 x 1GE Network Module, spare |
| C9200-NM-4X (=) | Catalyst 9200 4 x 10GE Network Module, spare |
| C9200-NM-BLANK (=) | Catalyst 9200 BLANK Network Module, spare |
| 堆叠配件 | |
| C9200-STACK-KIT= | C9200 Stack Kit Spare |
| C9200L-STACK-KIT= | C9200L Stack Kit Spare |
| STACK-T4-50CM | 50CM Type 3 Stacking Cable |
| STACK-T4-50CM= | 50CM Type 3 Stacking Cable, spare |
| STACK-T4-1M | 1M Type 3 Stacking Cable |
| STACK-T4-1M= | 1M Type 3 Stacking Cable, spare |
| STACK-T4-3M | 3M Type 3 Stacking Cable |
| STACK-T4-3M= | 3M Type 3 Stacking Cable, spare |
Catalyst 9300 系列交换机：适合小型到大型园区接入和汇聚部署;专为安全性、物联网、移动性和云打造。
思科Catalyst 9300系列交换机是思科领先的可堆叠企业接入交换平台，作为Catalyst 9000系列的一部分，旨在改造您的网络，以应对工作场所在任何地方、端点可以是任何东西、应用程序托管在任何地方的混合世界。
Catalyst 9300系列，包括新的Catalyst 9300X型号，将继续通过不断创新塑造未来，帮助您重新构想连接，加强安全性，并为您的大小混合型员工重新定义体验。使用Catalyst 9300交换机，您可以选择如何管理您的网络——本地、虚拟或云端。
Meraki Datasheets:
思科 Catalyst 9300 系列交换机 - SKU(表4):
| 规格 | Descrition | Features |
| 模块化上行链路 | ||
| C9300X-48HX-E | Catalyst 9300 48-port 10G/mGig copper with modular uplink, UPOE+, Network Essentials | |
| C9300X-48HX-A | Catalyst 9300 48-port 10G/mGig copper with modular uplink, UPOE+, Network Advantage | |
| C9300X-48HX-M | Catalyst 9300 48-port 10G/mGig copper with modular uplink, Meraki Advanced or Enterprise | Meraki-mode (Fully Cloud managed) |
| C9300X-48TX-E | Catalyst 9300 48-port 10G/mGig copper with modular uplink, data only, Network Essentials | |
| C9300X-48TX-A | Catalyst 9300 48-port 10G/mGig copper with modular uplink, data only, Network Advantage | |
| C9300X-48TX-M | Catalyst 9300 48-port 10G/mGig copper with modular uplink, data only, Meraki Advanced or Enterprise | Meraki-mode (Fully Cloud managed) |
| C9300X-48HXN-E | Catalyst 9300 40-port 5G/mGig, 8-port 10G copper with modular uplink, UPOE+, Network Essentials | |
| C9300X-48HXN-A | Catalyst 9300 40-port 5G/mGig, 8-port 10G copper with modular uplink, UPOE+, Network Advantage | |
| C9300X-48HXN-M | Catalyst 9300 40-port 5G/mGig, 8-port 10G copper with modular uplink, UPOE+, Meraki Advanced or Enterprise | Meraki-mode (Fully Cloud managed) |
| C9300X-24HX-E | Catalyst 9300 24-port 10G/mGig copper with modular uplink, UPOE+, Network Essentials | |
| C9300X-24HX-A | Catalyst 9300 24-port 10G/mGig copper with modular uplink, UPOE+, Network Advantage | |
| C9300X-24HX-M | Catalyst 9300 24-port 10G/mGig copper with modular uplink, UPOE+, Meraki Advanced or Enterprise | Meraki-mode (Fully Cloud managed) |
| C9300X-12Y-E | Catalyst 9300 12-port 25G/10G/1G SFP28 with modular uplinks, Network Essentials | |
| C9300X-12Y-A | Catalyst 9300 12-port 25G/10G/1G SFP28 with modular uplinks, Network Advantage | |
| C9300X-12Y-M | Catalyst 9300 12-port 25G/10G/1G SFP28 with modular uplinks, Meraki Advanced or Enterprise | Meraki-mode (Fully Cloud managed) |
| C9300X-24Y-E | Catalyst 9300 24-port 25G/10G/1G SFP28 with modular uplinks, Network Essentials | |
| C9300X-24Y-A | Catalyst 9300 24-port 25G/10G/1G SFP28 with modular uplinks, Network Advantage | |
| C9300X-24Y-M | Catalyst 9300 24-port 25G/10G/1G SFP28 with modular uplinks, Meraki Advanced or Enterprise | Meraki-mode (Fully Cloud managed) |
| C9300-24T-E | Catalyst 9300 24-port 1G copper with modular uplinks, data only, Network Essentials | |
| C9300-24T-A | Catalyst 9300 24-port 1G copper with modular uplinks, data only, Network Advantage | |
| C9300-24T-M | Catalyst 9300 24-port 1G copper with modular uplinks, data only, Meraki Advanced or Enterprise | Meraki-mode (Fully Cloud managed) |
| C9300-24P-E | Catalyst 9300 24-port 1G copper with modular uplinks, PoE+, Network Essentials | |
| C9300-24P-A | Catalyst 9300 24-port 1G copper with modular uplinks, PoE+, Network Advantage | |
| C9300-24P-M | Catalyst 9300 24-port 1G copper with modular uplinks, PoE+, Meraki Advanced or Enterprise | Meraki-mode (Fully Cloud managed) |
| C9300-24U-E | Catalyst 9300 24-port 1G copper with modular uplinks, UPOE, Network Essentials | |
| C9300-24U-A | Catalyst 9300 24-port 1G copper with modular uplinks, UPOE, Network Advantage | |
| C9300-24U-M | Catalyst 9300 24-port 1G copper with modular uplinks, UPOE, Meraki Advanced or Enterprise | Meraki-mode (Fully Cloud managed) |
| C9300-24UB-E | Catalyst 9300 higher scale 24-port 1G copper with modular uplinks, UPOE, Network Essentials | |
| C9300-24UB-A | Catalyst 9300 higher scale 24-port 1G copper with modular uplinks, UPOE, Network Advantage | |
| C9300-24U-E-UL | Catalyst 9300 24-port 1G copper with modular uplinks, UPOE, Network Advantage(Compatible with UL1069 Standard*) | |
| C9300-24U-A-UL | Catalyst 9300 24-port 1G copper with modular uplinks, UPOE, Network Advantage(Compatible with UL1069 Standard*) | |
| C9300-24H-E | Catalyst 9300 24-port 1G copper with modular uplinks, UPOE+, Network Essentials | |
| C9300-24H-A | Catalyst 9300 24-port 1G copper with modular uplinks, UPOE+, Network Advantage | |
| C9300-24UX-E | Catalyst 9300 24-port 10G/mGig copper with modular uplink, UPOE, Network Essentials | |
| C9300-24UX-A | Catalyst 9300 24-port 10G/mGig copper with modular uplink, UPOE, Network Advantage | |
| C9300-24UX-M | Catalyst 9300 24-port 10G/mGig copper with modular uplinks, UPOE, Meraki Advanced or Enterprise | Meraki-mode (Fully Cloud managed) |
| C9300-24UXB-E | Catalyst 9300 higher scale 24-port 10G/mGig copper with modular uplink, UPOE, Network Essentials | |
| C9300-24UXB-A | Catalyst 9300 higher scale 24-port 10G/mGig copper with modular uplink, UPOE, Network Advantage | |
| C9300-48T-E | Catalyst 9300 48-port 1G copper with modular uplinks, data only, Network Essentials | |
| C9300-48T-A | Catalyst 9300 48-port 1G copper with modular uplinks, data only, Network Advantage | |
| C9300-48T-M | Catalyst 9300 48-port 1G copper with modular uplinks, data only, Meraki Advanced or Enterprise | Meraki-mode (Fully Cloud managed) |
| C9300-48P-E | Catalyst 9300 48-port 1G copper with modular uplinks, PoE+, Network Essentials | |
| C9300-48P-A | Catalyst 9300 48-port 1G copper with modular uplinks, PoE+, Network Advantage | |
| C9300-48P-M | Catalyst 9300 48-port 1G copper with modular uplinks, PoE+, Meraki Advanced or Enterprise | Meraki-mode (Fully Cloud managed) |
| C9300-48U-E | Catalyst 9300 48-port 1G copper with modular uplinks, UPOE, Network Essentials | |
| C9300-48U-A | Catalyst 9300 48-port 1G copper with modular uplinks, UPOE, Network Advantage | |
| C9300-48U-M | Catalyst 9300 48-port 1G copper with modular uplinks, UPOE, Meraki Advanced or Enterprise | Meraki-mode (Fully Cloud managed) |
| C9300-48UB-E | Catalyst 9300 higher scale 48-port 1G copper with modular uplinks, UPOE, Network Essentials | |
| C9300-48UB-A | Catalyst 9300 higher scale 48-port 1G copper with modular uplinks, UPOE, Network Advantage | |
| C9300-48U-E-UL | Catalyst 9300 48-port 1G copper with modular uplinks, UPOE, Network Essentials(Compatible with UL1069 Standard*) | |
| C9300-48U-A-UL | Catalyst 9300 48-port 1G copper with modular uplinks, UPOE, Network Advantage(Compatible with UL1069 Standard*) | |
| C9300-48H-E | Catalyst 9300 48-port 1G copper with modular uplinks, UPOE+, Network Essentials | |
| C9300-48H-A | Catalyst 9300 48-port 1G copper with modular uplinks, UPOE+, Network Advantage | |
| C9300-48UXM-E | Catalyst 9300 48-port 2.5G (12 10G/mGig) copper with modular uplinks, UPOE, Network Essentials | |
| C9300-48UXM-A | Catalyst 9300 48-port 2.5G (12 10G/mGig) copper with modular uplinks, UPOE, Network Advantage | |
| C9300-48UXM-M | Catalyst 9300 48-port 2.5G (12 10G/mGig) copper with modular uplinks, UPOE, Meraki Advanced or Enterprise | Meraki-mode (Fully Cloud managed) |
| C9300-48UN-E | Catalyst 9300 48-port 5G copper with modular uplinks, UPOE, Network Essentials | |
| C9300-48UN-A | Catalyst 9300 48-port 5G copper with modular uplinks, UPOE, Network Advantage | |
| C9300-48UN-M | Catalyst 9300 48-port 5G copper with modular uplinks, UPOE, Meraki Advanced or Enterprise | Meraki-mode (Fully Cloud managed) |
| C9300-24S-E | Catalyst 9300 24-port 1G SFP with modular uplinks, Network Essentials | |
| C9300-24S-A | Catalyst 9300 24-port 1G SFP with modular uplinks, Network Advantage | |
| C9300-24S-M | Cisco Catalyst 9300 24-port 1G SFP, modular uplinks, Meraki Advanced or Enterprise | Meraki-mode (Fully Cloud managed) |
| C9300-48S-E | Catalyst 9300 48-port 1G SFP with modular uplinks, Network Essentials | |
| C9300-48S-A | Catalyst 9300 48-port 1G SFP with modular uplinks, Network Advantage | |
| C9300-48S-M | Catalyst 9300 48-port 1G SFP with modular uplinks, Meraki Advanced or Enterprise | Meraki-mode (Fully Cloud managed) |
| 非模块化上行链路 | ||
| C9300L-24T-4G-E | Catalyst 9300 24-port 1G copper, with fixed 4x1G SFP uplinks, data only, Network Essentials | |
| C9300L-24T-4G-A | Catalyst 9300 24-port 1G copper, with fixed 4x1G SFP uplinks, data only, Network Advantage | |
| C9300L-24P-4G-E | Catalyst 9300 24-port 1G copper, with fixed 4x1G SFP uplinks, PoE+, Network Essentials | |
| C9300L-24P-4G-A | Catalyst 9300 24-port 1G copper, with fixed 4x1G SFP uplinks, PoE+, Network Advantage | |
| C9300L-48T-4G-E | Catalyst 9300 48-port 1G copper, with fixed 4x1G SFP uplinks, data only, Network Essentials | |
| C9300L-48T-4G-A | Catalyst 9300 48-port 1G copper, with fixed 4x1G SFP uplinks, data only, Network Advantage | |
| C9300L-48P-4G-E | Catalyst 9300 48-port 1G copper, with fixed 4x1G SFP uplinks, PoE+, Network Essentials | |
| C9300L-48P-4G-A | Catalyst 9300 48-port 1G copper with fixed 4x1G SFP uplinks, PoE+, Network Advantage | |
| C9300L-48PF-4G-E | Catalyst 9300 48-port 1G copper with fixed 4x1G SFP uplinks, PoE+, Network Essentials | |
| C9300L-48PF-4G-A | Catalyst 9300 48-port 1G copper with fixed 4x1G SFP uplinks, PoE+, Network Advantage | |
| C9300L-24T-4X-E | Catalyst 9300 24-port 1G copper with fixed 4x10G/1G SFP+ uplinks, data only, Network Essentials | |
| C9300L-24T-4X-A | Catalyst 9300 24-port 1G copper with fixed 4x10G/1G SFP+ uplinks, data only, Network Advantage | |
| C9300L-24T-4X-M | Catalyst 9300 24-port 1G copper with fixed 4x10G/1G SFP+ uplinks, data only, Meraki Advanced or Enterprise | Meraki-mode (Fully Cloud managed) |
| C9300L-24P-4X-E | Catalyst 9300 24-port 1G copper with fixed 4x10G/1G SFP+ uplinks, PoE+, Network Essentials | |
| C9300L-24P-4X-A | Catalyst 9300 24-port 1G copper with fixed 4x10G/1G SFP+ uplinks, PoE+, Network Advantage | |
| C9300L-24P-4X-M | Catalyst 9300 24-port 1G copper with fixed 4x10G/1G SFP+ uplinks, PoE+, Meraki Advanced or Enterprise | Meraki-mode (Fully Cloud managed) |
| C9300L-24UXG-4X-E | Catalyst 9300 24-port 8XmGig (100M/1G/2.5G/5G/10G) + 16x 10M/100M/1G copper with fixed 4x10G/1G SFP+ uplinks, UPOE, Network Essentials | |
| C9300L-24UXG-4X-A | Catalyst 9300 24-port 8XmGig (100M/1G/2.5G/5G/10G) + 16x 10M/100M/1G copper with fixed 4x10G/1G SFP+ uplinks, UPOE, Network Advantage | |
| C9300L-24UXG-4X-M | Catalyst 9300 24-port 8XmGig (100M/1G/2.5G/5G/10G) + 16x 10M/100M/1G copper with fixed 4x10G/1G SFP+ uplinks, UPOE, Meraki Advanced or Enterprise | Meraki-mode (Fully Cloud managed) |
| C9300L-48T-4X-E | Catalyst 9300 48-port 1G copper with fixed 4x10G/1G SFP+ uplinks, data only, Network Essentials | |
| C9300L-48T-4X-A | Catalyst 9300 48-port 1G copper with fixed 4x10G/1G SFP+ uplinks, data only, Network Advantage | |
| C9300L-48T-4X-M | Catalyst 9300 48-port 1G copper with fixed 4x10G/1G SFP+ uplinks, data only, Meraki Advanced or Enterprise | Meraki-mode (Fully Cloud managed) |
| C9300L-48P-4X-E | Catalyst 9300 48-port 1G copper with fixed 4x10G/1G SFP+ uplinks, PoE+, Network Essentials | |
| C9300L-48P-4X-A | Catalyst 9300 48-port 1G copper with fixed 4x10G/1G SFP+ uplinks, PoE+, Network Advantage | |
| C9300L-48P-4X-M | Catalyst 9300 48-port 1G copper with fixed 4x10G/1G SFP+ uplinks, PoE+, Meraki Advanced or Enterprise | Meraki-mode (Fully Cloud managed) |
| C9300L-48PF-4X-E | Catalyst 9300 48-port 1G copper with fixed 4x10G/1G SFP+ uplinks, full PoE+, Network Essentials | |
| C9300L-48PF-4X-A | Catalyst 9300 48-port 1G copper with fixed 4x10G/1G SFP+ uplinks, full PoE+, Network Advantage | |
| C9300L-48PF-4X-M | Catalyst 9300 48-port 1G copper with fixed 4x10G/1G SFP+ uplinks, full PoE+, Meraki Advanced or Enterprise | Meraki-mode (Fully Cloud managed) |
| C9300L-48UXG-4X-E | Catalyst 9300 48-port fixed uplinks UPOE, 12x mGig (100M/1G/2.5G/5G/10G) + 36x 10M/100M/1G copper, 4x 10G uplinks, Network Essentials | |
| C9300L-48UXG-4X-A | Catalyst 9300 48-port 12x mGig (100M/1G/2.5G/5G/10G) + 36x 10M/100M/1G copper with fixed 4x 10G/1G SFP+ uplinks, UPOE, Network Advantage | |
| C9300L-48UXG-4X-M | Catalyst 9300 48-port 12x mGig (100M/1G/2.5G/5G/10G) + 36x 10M/100M/1G copper with fixed 4x 10G/1G SFP+ uplinks, UPOE, Meraki Advanced or Enterprise | Meraki-mode (Fully Cloud managed) |
| C9300L-24UXG-2Q-E | Catalyst 9300 24-port 8x mGig (100M/1G/2.5G/5G/10G) + 16x 10M/100M/1G copper with fixed 2x 40G QSFP uplinks, UPOE, Network Essentials | |
| C9300L-24UXG-2Q-A | Catalyst 9300 24-port 8x mGig (100M/1G/2.5G/5G/10G) + 16x 10M/100M/1G copper with fixed 2x 40G QSFP uplinks, UPOE, Network Advantage | |
| C9300L-48UXG-2Q-E | Catalyst 9300 48-port 12x mGig (100M/1G/2.5G/5G/10G) + 36x 10M/100M/1G copper with fixed 2x 40G QSFP uplinks, UPOE, Network Essentials | |
| C9300L-48UXG-2Q-A | Catalyst 9300 48-port 12x mGig (100M/1G/2.5G/5G/10G) + 36x 10M/100M/1G copper with fixed 2x 40G QSFP uplinks, UPOE, Network Advantage | |
| C9300LM-48UX-4Y-E | Catalyst 9300 mini 48-port UPOE, 8-port 10G Multigigabit copper, 40-port 1G, 4x 25G uplinks, Network Essentials | |
| C9300LM-48UX-4Y-A | Catalyst 9300 mini 48-port UPOE, 8-port 10G Multigigabit copper, 40-port 1G, 4x 25G uplinks, Network Advantage | |
| C9300LM-48U-4Y-E | Catalyst 9300 mini 48-port 1G copper, UPOE, 4x 25G uplinks, Network Essentials | |
| C9300LM-48U-4Y-A | Catalyst 9300 mini 48-port 1G copper, UPOE, 4x 25G uplinks, Network Advantage | |
| C9300LM-48T-4Y-E | Catalyst 9300 mini 48-port 1G copper, data, 4x 25G uplinks, Network Essentials | |
| C9300LM-48T-4Y-A | Catalyst 9300 mini 48-port 1G copper, data, 4x 25G uplinks, Network Advantage | |
| C9300LM-24U-4Y-E | Catalyst 9300 mini 24-port 1G copper, UPOE, 4x 25G uplinks, Network Essentials | |
| C9300LM-24U-4Y-A | Catalyst 9300 mini 24-port 1G copper, UPOE, 4x 25G uplinks, Network Advantage | |

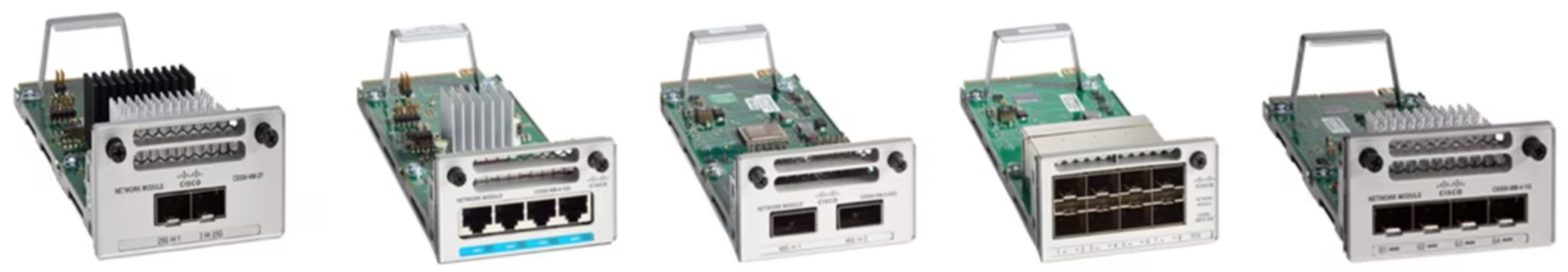

思科 Catalyst 9300 系列交换机 - 网络模块部件、存储部件和堆叠配件说明：
Cisco Catalyst 9300系列交换机配有模块化或固定上行链路，如表4所示。通过模块化SKU， 打造面向未来的网络，提供更安全、更可持续的体验，将速度和规模与高级自动化和分析功能相结合。 从而提供基础设施投资保护。购买交换机时，您可以从表5中描述的网络模块中进行选择。
思科 Catalyst 9300 系列交换机 - 网络模块部件、存储部件和堆叠配件说明表：(表5):
| 规格 | Descrition |
| Network modules | |
| C9300X-NM-8M | Catalyst 9300X 8 x 10G/mGig copper Network Module |
| C9300X-NM-8M= | Catalyst 9300X 8 x 10G/mGig copper Network Module, spare |
| C9300X-NM-8Y | Catalyst 9300X 8 x 25G/10G/1G multi-rate SFP Network Module |
| C9300X-NM-8Y= | Catalyst 9300X 8 x 25G/10G/1G multi-rate SFP Network Module, spare |
| C9300X-NM-2C | Catalyst 9300X 2 x 100G/40G dual rate QSFP Network Module |
| C9300X-NM-2C= | Catalyst 9300X 2 x 100G/40G dual rate QSFP Network Module, spare |
| C9300X-NM-4C | Catalyst 9300X 4 x 100G/40G dual rate QSFP Network Module |
| C9300X-NM-4C= | Catalyst 9300X 4 x 100G/40G dual rate QSFP Network Module, spare |
| C9300-NM-4G | Catalyst 9300 4 x 1GE SFP Network Module |
| C9300-NM-4G= | Catalyst 9300 4 x 1GE SFP Network Module, spare |
| C9300-NM-8X | Catalyst 9300 8 x 10G/1G SFP+ Network Module |
| C9300-NM-8X= | Catalyst 9300 8 x 10G/1G SFP+ Network Module, spare |
| C9300-NM-2Q | Catalyst 9300 2 x 40GE QSFP Network Module |
| C9300-NM-2Q= | Catalyst 9300 2 x 40GE QSFP Network Module, spare |
| C9300-NM-2Y | Catalyst 9300 2 x 25G/10G/1G SFP28 Network Module |
| C9300-NM-2Y= | Catalyst 9300 2 x 25G/10G/1G SFP28 Network Module, spare |
| C9300-NM-4M | Catalyst 9300 4 x 10G/mGig copper Network Module |
| C9300-NM-4M= | Catalyst 9300 4 x 10G/mGig copper Network Module, spare |
| NM-BLANK-T1= | Cisco Catalyst Type 1 Network Module Blank, spare |
| Storage Module | |
| SSD-120G | Cisco pluggable USB3.0 120G SSD storage |
| SSD-120G= | Cisco pluggable USB3.0 120G SSD storage, spare |
| SSD-240G | Cisco pluggable USB3.0 240G SSD storage |
| SSD-240G= | Cisco pluggable USB3.0 240G SSD storage, spare |
| Cisco StackWise-480/1T and StackPower cables（Catalyst 9300X & Catalyst 9300） | |
| STACK-T1-50CM= | Cisco StackWise-480/1T 50cm stacking cable spare |
| STACK-T1-1M= | Cisco StackWise-480/1T 1m stacking cable spare |
| STACK-T1-3M= | Cisco StackWise-480/1T 3m stacking cable spare |
| CAB-SPWR-30CM= | Cisco Catalyst StackPower cable 30cm spare |
| CAB-SPWR-150CM= | Cisco Catalyst StackPower cable 150cm spare |
| Cisco StackWise-320 Accessories | |
| C9300L-STACK-KIT | Stack Kit for C9300L SKUs – includes 2 Stack Adaptors and 1 Stack Cable |
| C9300L-STACK-KIT= | Stack Kit for C9300L SKUs – includes 2 Stack Adaptors and 1 Stack Cable, spare |
| STACK-T3-50CM | 50CM Type 3 Stacking Cable – default with Stack Kit for C9300L SKUs |
| STACK-T3-50CM= | 50CM Type 3 Stacking Cable, spare for C9300L SKUs |
| STACK-T3-1M | 1M Type 3 Stacking Cable for C9300L SKUs |
| STACK-T3-1M= | 1M Type 3 Stacking Cable, spare for C9300L SKUs |
| STACK-T3-3M | 3M Type 3 Stacking Cable for C9300L SKUs |
| STACK-T3-3M= | 3M Type 3 Stacking Cable, spare for C9300L SKUs |
| C9300L-STACK-KIT2 | Stack Kit 2 for C9300L SKUs – includes 2 Stack Adaptors and 1 Stack Cable |
| C9300L-STACK-KIT2= | Stack Kit 2 for C9300L SKUs – includes 2 Stack Adaptors and 1 Stack Cable, spare |
| STACK-T3A-50CM | 50CM Type 3A Stacking Cable – default with Stack Kit for C9300L SKUs |
| STACK-T3A-50CM= | 50CM Type 3A Stacking Cable, spare for C9300L SKUs |
| STACK-T3A-1M | 1M Type 3A Stacking Cable for C9300L SKUs |
| STACK-T3A-1M= | 1M Type 3A Stacking Cable, spare for C9300L SKUs |
| STACK-T3A-3M | 3M Type 3A Stacking Cable for C9300L SKUs |
| STACK-T3A-3M= | 3M Type 3A Stacking Cable, spare for C9300L SKUs |

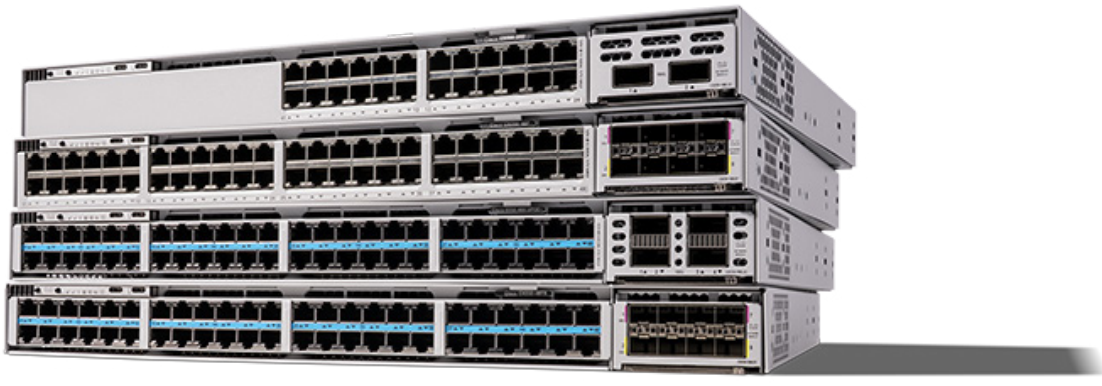

思科 Catalyst 9350 系列智能交换机（New）
思科C9350系列智能交换机旨在提供更灵活的操作，确保更安全的体验，并为企业网络带来卓越的速度和规模。、 作为面向未来的工作场所的基础，这些企业局域网接入智能交换机在组织寻求改造其网络架构时提供了可扩展性、安全性和简化的操作。
思科 Catalyst 9350 系列交换机:
| 规格 | Descrition | Default PSU |
| C9350-48HX | Cisco C9350 48-port 10G mGig with 90W UPOE+ | PWR-C2-1600WAC-I |
| C9350-48TX | Cisco C9350 48-port 10G mGig data-only | PWR-C2-500WAC-I |
| C9350-48U | Cisco C9350 48-port 1G with 60W UPOE | PWR-C2-850WAC-I |
| C9350-24U | Cisco C9350 24-port 1G with 60W UPOE | PWR-C2-850WAC-I |
| C9350-48P | Cisco C9350 48-port 1G with 30W PoE+ | PWR-C2-850WAC-I |
| C9350-24P | Cisco C9350 24-port 1G with 30W PoE+ | PWR-C2-850WAC-I |
| C9350-48T | Cisco C9350 48-port 1G data-only | PWR-C2-500WAC-I |
| C9350-24T | Cisco C9350 24-port 1G data-only | PWR-C2-500WAC-I |
思科 Catalyst 9350 系列交换机 - 网络模块部件、存储部件和堆叠配件说明表：(表5):
| 规格 | Descrition |
| C9350-NM-4C | Cisco C9350 4 x 100G/40G QSPF28 network module |
| C9350-NM-4C= | Cisco C9350 4 x 100G/40G QSPF28 network module, spare |
| C9350-NM-2C | Cisco C9350 2 x 100G/40G QSFP28 network module |
| C9350-NM-2C= | Cisco C9350 2 x 100G/40G QSFP28 network module, spare |
| C9350-NM-8Y | Cisco C9350 8 x 25G/10G/1G or 4x 50G/25G/10G/1G SFP56 network module |
| C9350-NM-8Y= | Cisco C9350 8 x 25G/10G/1G or 4x 50G/25G/10G/1G SFP56 network module, spare |
| C9350-NM-4C | Cisco C9350 4 x 100G/40G QSPF28 network module |
| C9350-NM-4C= | Cisco C9350 4 x 100G/40G QSPF28 network module, spare |
| C9350-NM-2C | Cisco C9350 2 x 100G/40G QSFP28 network module |
| C9350-NM-2C= | Cisco C9350 2 x 100G/40G QSFP28 network module, spare |
| C9350-NM-8Y | Cisco C9350 8 x 25G/10G/1G or 4x 50G/25G/10G/1G SFP56 network module |
| C9350-NM-8Y= | Cisco C9350 8 x 25G/10G/1G or 4x 50G/25G/10G/1G SFP56 network module, spare |
思科 Catalyst 9400 系列交换机 - 专为安全、物联网、移动性和云而构建
Cisco®Catalyst®9400系列交换机是思科领先的模块化企业接入交换平台，作为Catalyst 9000系列的一部分， 旨在改造您的网络，以应对工作场所在任何地方、端点可以是任何东西、应用程序托管在任何地方的混合世界。 Catalyst 9400系列，包括Catalyst 9400 SUP-2/2XL监控器和线卡，将继续通过不断创新塑造未来， 帮助您重新构想连接，加强安全性，并为您的大小混合动力员工重新定义体验。
思科 Catalyst 9400 系列交换机 系列机箱功能：(表5):
| Feature | Cisco Catalyst C9404R Chassis | Cisco Catalyst C9407R Chassis | Cisco Catalyst C9410R Chassis |
| 总槽位数 | 4 | 7 | 10 |
| 业务板槽位数 | 2 | 5 | 8 |
| 主控板槽位数 | 2 | 2 | 2 |
| 主控板槽位数号 | 2 and 3 | 3 and 4 | 5 and 6 |
| 主控冗余设计 | Yes | Yes | Yes |
| 可选主控型号 | C9400X-SUP-2XL, C9400X-SUP-2 | C9400X-SUP-2XL, C9400X-SUP-2 | C9400X-SUP-2XL, C9400X-SUP-2 |
| 每个插槽的最大PoE | 4320W | 4320W | 4320W |
| 插槽的最大带宽 | Up to 480 Gbps on all slots | Up to 480 Gbps on all slots | Up to 480 Gbps on all slots |
| 电源数量 | 4 | 8 | 8 |
| 交流输入电源 | Yes | Yes | Yes |
| 集成PoE | Yes | Yes | Yes |
| 可选电源 | 3200WAC,2100WAC, 3200WDC | 3200WAC,2100WAC, 3200WDC | 3200WAC,2100WAC, 3200WDC |
| 风扇数量 | 1 | 1 | 1 |
思科 Catalyst 9400 系列交换机引擎卡（主控卡）和业务办卡 - SKU(表4):
| 规格 | Descrition | 适配主控 |
| 10/100/1000/电口卡 | ||
| C9400-LC-48H | Cisco Catalyst 9400 Series 48-Port UPOE+ 10/100/1000 (RJ-45) | C9400X-SUP-2, C9400X-SUP-2XL |
| C9400-LC-48P | Cisco Catalyst 9400 Series 48-Port POE+ 10/100/1000 (RJ-45) | C9400X-SUP-2, C9400X-SUP-2XL |
| C9400-LC-48T | Cisco Catalyst 9400 Series 48-Port 10/100/1000 (RJ-45) | C9400X-SUP-2, C9400X-SUP-2XL |
| C9400-LC-48U | Cisco Catalyst 9400 Series 48-Port UPOE 10/100/1000 (RJ-45) | C9400X-SUP-2, C9400X-SUP-2XL |
| C9400-LC-48UX | Cisco Catalyst 9400 Series 48Port UPOE w/ 24p mGig 24p RJ-45 | C9400X-SUP-2, C9400X-SUP-2XL |
| C9400-LC-48HN | Cisco Catalyst 9400 Series 48-Port UPOE+ 5G (RJ-45) | C9400X-SUP-2, C9400X-SUP-2XL |
| C9400-LC-48H-UL | Cisco Catalyst 9400 Series 48-Port UPOE+ 10/100/1000 (RJ-45) | C9400X-SUP-2, C9400X-SUP-2XL |
| C9400-LC-48HX | Cisco Catalyst 9400 Series 48-Port UPOE+ 10G mGig | C9400X-SUP-2, C9400X-SUP-2XL |
| C9400-LC-48TX | Cisco Catalyst 9400 Series 48-Port 10 Gigabit Ethernet Data | C9400X-SUP-2, C9400X-SUP-2XL |
| 千兆光业务卡 | ||
| C9400-LC-48S | Cisco Catalyst 9400 Series 48-Port Gigabit Ethernet(SFP) | C9400X-SUP-2, C9400X-SUP-2XL |
| C9400-LC-24S | Cisco Catalyst 9400 Series 24-Port Gigabit Ethernet(SFP) | C9400X-SUP-2, C9400X-SUP-2XL |
| 万兆光业务卡 | ||
| C9400-LC-24XS | Cisco Catalyst 9400 Series 24-Port 10 Gigabit Ethernet(SFP+) | C9400X-SUP-2, C9400X-SUP-2XL |
| C9400-LC-48XS | Cisco Catalyst 9400 Series 48-Port 10 Gigabit Ethernet(SFP+) | C9400X-SUP-2, C9400X-SUP-2XL |
| 25G / 100G 光业务卡 | ||
| C9400-LC-12QC | Cisco Catalyst 9400 Series 12-Port 40GE/4-port 100GE | C9400X-SUP-2, C9400X-SUP-2XL |
| C9400-LC-24XY | Cisco Catalyst 9400 Series 20-Port 25GE and 4-Port 10GE | C9400X-SUP-2, C9400X-SUP-2XL |
C9400 Ordering information
| Product number | Descrition |
| C9404R(=) | CiscoCatalyst9400Series4 slotchassis |
| C9407R(=) | CiscoCatalyst9400Series7 slotchassis |
| C9410R(=) | CiscoCatalyst9400Series10 slotchassis |
| C9400X-SUP-2(=) | CiscoCatalyst9400SeriesSupervisor2Module |
| C9400X-SUP-2/2 | CiscoCatalyst9400SeriesRedundantSupervisor2Module |
| C9400X-SUP-2XL(=) | CiscoCatalyst9400SeriesSupervisor2XLModule |
| C9400X-SUP-2XL/2 | CiscoCatalyst9400SeriesRedundantSupervisor2XLModule |
| C9400-SSD-240GB | Cisco Catalyst 9400 Series 240GB M2 SATA memory (Supervisor) |
| C9400-SSD-480GB | Cisco Catalyst 9400 Series 480GB M2 SATA memory (Supervisor) |
| C9400-SSD-960GB | Cisco Catalyst 9400 Series 960GB M2 SATA memory (Supervisor) |
| C9400-LC-48U(=) | CiscoCatalyst9400Series48-PortUPOE10/100/1000(RJ-45) |
| C9400-LC-48P(=) | CiscoCatalyst9400Series48-PortPOE+10/100/1000(RJ-45) |
| C9400-LC-48T (=) | Cisco Catalyst 9400 Series 48-Port 10/100/1000 (RJ-45) |
| C9400-LC-48UX (=) | Cisco Catalyst 9400 Series 48-Port UPOE w/ 24-port 10G mGig, 24-port 1G RJ-45 |
| C9400-LC-24XS (=) | Cisco Catalyst 9400 Series 24-Port 10 Gigabit Ethernet (SFP+) |
| C9400-LC-24S (=) | Cisco Catalyst 9400 Series 24-Port 1 Gigabit Ethernet (SFP) |
| C9400-LC-48S (=) | Cisco Catalyst 9400 Series 48-Port 1 Gigabit Ethernet (SFP) |
| C9400-LC-48H (=) | Cisco Catalyst 9400 Series 48-Port UPOE+ 10/100/1000 (RJ-45) |
| C9400-LC-48HN (=) | Cisco Catalyst 9400 Series 48-Port UPOE+ 5G mGig (RJ-45) |
| C9400-LC-48HX (=) | Cisco Catalyst 9400 Series 48-Port UPOE+ 10G mGig (RJ-45) |
| C9400-LC-48TX (=) | Cisco Catalyst 9400 Series 48-Port 10G mGig data (RJ-45) |
| C9400-LC-48XS (=) | Cisco Catalyst 9400 Series 48-Port 10G (SFP+) |
| C9400-LC-24XY | Cisco Catalyst 9400 Series 20-Port 25G (SFP28), 4-Port 10G (SFP+) |
| C9400-LC-12QC | Cisco Catalyst 9400 Series 12-Port 40G (QSFP+) or 4-Port 100G (QSFP28), 4-Port 40G (QSFP+) |
| C9400-PWR-3200ACT (=) | Cisco Catalyst 9400 Series Titanium Rated 3200W AC Power Supply |
| C9400-PWR-3200AC (=) | Cisco Catalyst 9400 Series Platinum Rated 3200W AC Power Supply |
| C9400-PWR-2100AC (=) | Cisco Catalyst 9400 Series Platinum Rated 2100W AC Power Supply |
| C9400-PWR-3200DC (=) | Cisco Catalyst 9400 Series 3200W DC Power Supply |
Catalyst 9500 系列核心交换机
Cisco Catalyst 9500X交换机是业界首款专为企业园区设计的固定10、25、50、40、100、200和400千兆以太网交换机。
Catalyst 9500X交换机为企业应用程序提供了无与伦比的转发规模和深度缓冲。
Catalyst 9500X型号包括非阻塞50千兆以太网小型可插拔（SFP-56）和非阻塞400千兆以太网四SFP双密度（QSFP-DD）端口。
支持高级路由、思科软件定义访问功能以及采用思科StackWise®虚拟技术的网络系统虚拟化，
提供Cisco Catalyst Center或Cisco Meraki®云监控的操作选择。
| 规格 | Descrition |
| C9500X-28C8D-A | Catalyst 9500 28x 40/100G + 8x40/100/200/400G switch, NW Advantage License |
| C9500X-28C8D-E | Catalyst 9500 28x 40/100G + 8x40/100/200/400G switch, NW Essentials License |
| C9500X-60L4D-A | Catalyst 9500 60x 10/25/50G + 4x 40/100/200/400G switch, NW Advantage License |
| C9500-32C-E | Cisco Catalyst 9500 Series high performance 32-port 100G switch, NW Ess. License |
| C9500-32C-A | Cisco Catalyst 9500 Series high performance 32-port 100G switch, NW Adv. License |
| C9500-32QC-E | Cisco Catalyst 9500 Series high performance 32x 40G or 16x 100G switch, NW Ess. License |
| C9500-32QC-A | Cisco Catalyst 9500 Series high performance 32x 40G or 16x 100G switch, NW Adv. License |
| C9500-48Y4C-E | Cisco Catalyst 9500 Series high performance 48x 1/10/25G + 4x 40/100G switch, NW Ess. License |
| C9500-48Y4C-A | Cisco Catalyst 9500 Series high performance 48x 1/10/25G + 4x 40/100G switch, NW Adv. License |
| C9500-24Y4C-E | Cisco Catalyst 9500 Series high performance 24x 1/10/25G + 4x 40/100G switch, NW Ess. License |
| C9500-24Y4C-A | Cisco Catalyst 9500 Series high performance 24x 1/10/25G + 4x 40/100G switch, NW Adv. License |
| C9500-16X-E | Cisco Catalyst 9500 16x 1/10G switch, NW Ess. License |
| C9500-16X-A | Cisco Catalyst 9500 16x 1/10G switch, NW Adv. License |
| C9500-16X-2Q-A | Cisco Catalyst 9500 16x 1/10G switch, 2 x 40GE Network Module, NW Adv. License |
| C9500-16X-2Q-E | Cisco Catalyst 9500 16x 1/10G switch, 2 x 40GE Network Module, NW Ess. License |
| Network modules | |
| C9500-NM-2Q | Cisco Catalyst 9500 2 x 40GE Network Module |
| C9500-NM-8X | Cisco Catalyst 9500 8 x 10GE Network Module |
| C9500-NM-2Q= | Cisco Catalyst 9500 2 x 40GE Network Module Spare |
| C9500-NM-8X= | Cisco Catalyst 9500 8 x 10GE Network Module Spare |
Catalyst 9600 系列交换机：适合中型到大型园区核心和汇聚部署;模块化，100G/40G/25G/10G/1G，最高 25.6 Tbps
思科® Catalyst® 9600 系列核心交换机:
Cisco Catalyst 9600系列交换机专为大规模弹性而设计，具有全面的安全性，使您的业务能够以较低的总运营成本增长。 Catalyst 9600系列建立在Catalyst 9000的基础上，在必须始终在线的情况下提供了规模和安全性。 Catalyst 9600系列交换机是业界首批专为企业园区设计的25/50 SFP和100/400 QSFP系列模块化交换机之一， 为企业应用程序提供卓越的表规模（MAC、IP路由和访问控制列表[ACL]）和缓冲。
| 规格 | Descrition | Supervisor engines supported |
| C9600-LC-24C | Cisco Catalyst 9600 Series 24-Port 40GE/12-Port 100GE | C9600-SUP-1, C9600X-SUP-2 |
| C9600-LC-48YL | Cisco Catalyst 9600 Series 48-Port 25GE/10GE/1GE | C9600-SUP-1, C9600X-SUP-2 |
| C9600-LC-48TX | Cisco Catalyst 9600 Series 48-Port Copper | C9600-SUP-1, C9600X-SUP-2 |
| C9600X-LC-32CD | Cisco Catalyst 9600 Series 30-Port 100G,2-Port 400G | C9600-SUP-1, C9600X-SUP-2 |
| C9600-LC-40YL4CD | Cisco Catalyst 9600 Series 40-Port 1/10/25/50G,2x200G,2x400G | C9600-SUP-1, C9600X-SUP-2 |
| C9600X-LC-56YL4C | Cisco Catalyst 9600 Series 56-Port 10G/25G/50G, 4-Port 100G | C9600-SUP-1, C9600X-SUP-2 |
C9600 Ordering information
| Product number | Descrition |
| Product number | Description |
| C9606R (=) | Cisco Catalyst 9600 Series 6 Slot Chassis |
| C9600-SUP-1 (=) | Cisco Catalyst 9600 Series Supervisor 1 Module |
| C9600-SUP-1/2 | Cisco Catalyst 9600 Series Redundant Supervisor 1 Module |
| C9600X-SUP-2 (=) | Cisco Catalyst 9600 Series Supervisor 2 Module |
| C9600X-SUP-2/2 | Cisco Catalyst 9600 Series Redundant Supervisor 2 module |
| C9600-LC-24C (=) | Cisco Catalyst 9600 Series 24-Port 40GE/12-Port 100GE line card |
| C9600-LC-48YL (=) | Cisco Catalyst 9600 Series 48-Port 50/25/10/1GE line card |
| C9600-LC-48TX (=) | Cisco Catalyst 9600 Series 48-port RJ45 Copper – 10GE/5GE/2.5GE/1GE/100Mbps/10Mbps line card |
| C9600-LC-48S (=) | Cisco Catalyst 9600 Series 48-Port 1GE line card |
| C9600-LC-40YL4CD (=) | Cisco Catalyst 9600 Series Combo line card
40 ports 50/25/10GE SFP56 2 ports 200/100/40QSFP56 uplinks 2 ports 400/200/100GE QSFP-DD uplinks |
| C9600X-LC-56YL4C (=) | Cisco Catalyst 9600 Series Combo line card
56 ports 50/25/10GE SFP56 4 ports 100/40GE QSFP28 uplinks |
| C9600X-LC-32CD (=) | Cisco Catalyst 9600 Series Combo line card
30 ports 100/40G QSFP28 2 ports 400/200/100G QSFP-DD |
| C9606-FAN (=) | Cisco Catalyst 9600 Series C9606 chassis fan tray |
| C9K-F2-SSD-240GB (=) | Cisco Catalyst 9600 Series 240GB SSD storage |
| C9K-F2-SSD-480GB (=) | Cisco Catalyst 9600 Series 480GB SSD storage |
| C9K-F2-SSD-960GB (=) | Cisco Catalyst 9600 Series 960GB SSD storage |
| Cisco DNA Software Term Licenses | Description |
| C9600-DNA-A | C9600 Cisco DNA Advantage Software subscription term license |
| C9600-DNA-A-3Y | C9600 Cisco DNA Advantage Software subscription, 3-year license |
| C9600-DNA-A-5Y | C9600 Cisco DNA Advantage Software subscription, 5-year license |
| C9600-DNA-A-7Y | C9600 Cisco DNA Advantage Software subscription, 7-year license |
| Cisco Catalyst Software term license | Description |
| C9600-DNX-A-3Y | C9600 Advantage Catalyst Software subscription, 3-year license |
| C9600-DNX-A-5Y | C9600 Advantage Catalyst Software subscription, 5-year license |
| C9600-DNX-A-7Y | C9600 Advantage Catalyst Software subscription, 7-year license |
| Power Supplies | Description |
| C9600-PWR-3KWAC (=) | Cisco Catalyst 9600 Series 3000W AC Power Supply |
| C9600-PWR-2KWAC (=) | Cisco Catalyst 9600 Series 2000W AC Power Supply |
| C9600-PWR-2KWDC (=) | Cisco Catalyst 9600 Series 2000W DC Power Supply |
| Spare accessories and kits | Description |
| C9606-SLOT-BLANK (=) | Cisco Catalyst 9600 Series blank for chassis module slot |
| C9606-PWR-BLANK (=) | Cisco Catalyst 9600 Series blank for chassis power supply slot |
| CAB-CONSOLE-USB | Console Cable 6ft with USB Type A and mini-B |
| CAB-CONSOLE-RJ45 | Console Cable 6ft with RJ45 and DB9F |
| C9606-RACK-KIT= | Cisco Catalyst 9600 Series 6-slot chassis Rack Mount |
| C9606-ACC-KIT= | Cisco Catalyst 9600 Series 6-slot chassis Accessory Kit |
| C9606-SHELF-KIT= | Cisco Catalyst 9600 Series 6-slot chassis Shelf Install Kit |
| C9606-FB-23-KIT= | Cisco Catalyst 9600 Series 6-slot chassis Front to Back Kit |

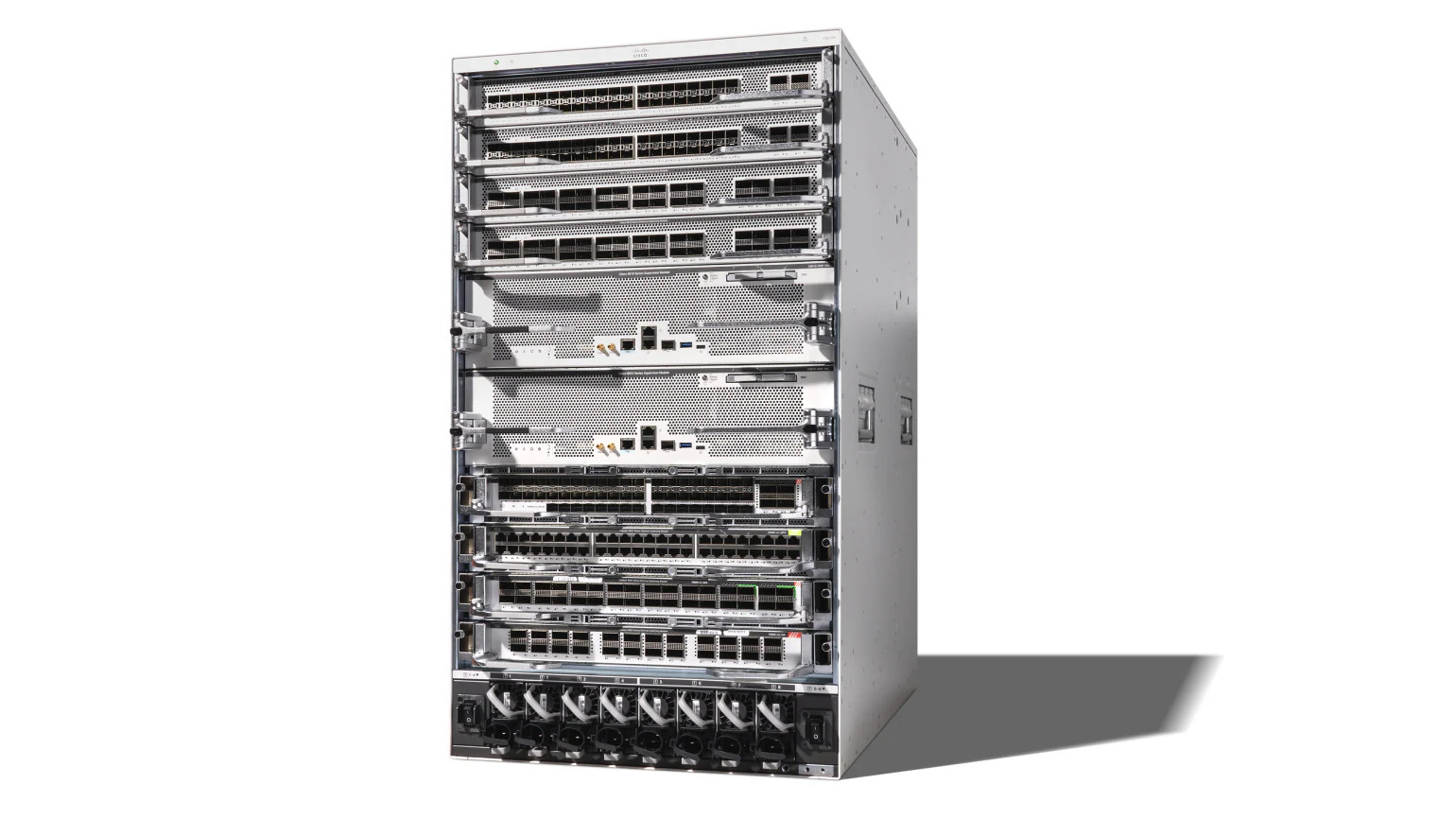

Catalyst 9610 系列交换机：核心交换机（NEW）
思科C9610系列智能交换机——下一代硬件，旨在通过高端口密度和卓越的带宽能力重新定义校园交换。
这些交换机旨在为AI Enterprise供电，支持25G和100G上行链路，并为400G做好准备，为您的工作场所提供未来保障。
凭借安全第一的架构和模块化的可扩展性，这些交换机可以随着您的业务增长而适应。思科C9610系列提供稳健的性能、规模和安全性，
毫不妥协。使用思科C9610系列智能交换机提升您的网络，创新满足当今和未来的需求。它们是Hypershield，可用于高级威胁缓解，
支持后量子密码术（PQC）算法和加密，以防止未来使用量子计算机的攻击，并且是硬件，可使用Cisco Live Protect为软件漏洞提供零日攻击保护。
C9610 Ordering information
| Product number | Descrition |
| Product number | Description |
| C9610R (=) | Cisco C9610 Series Smart Switches 10-slot chassis |
| C9610-SUP-3 (=) | Cisco C9610 Series Smart Switches Supervisor 3 module |
| C9610-SUP-3XL (=) | Cisco C9610 Series Smart Switches Supervisor 3XL module |
| C9610-LC-32CD (=) | C9610 Series Smart Switches combo line card 30 ports 100/40G QSFP28 2 ports 400/200/100G QSFP-DD |
| C9610-LC-40YL4CD (=) | Cisco C9610 Series Smart Switches combo line card 40 ports 50/25/10GE SFP56 2 ports 100/40QSFP56 uplinks 2 ports 400/200/100GE QSFP-DD uplinks |
| C9600X-LC-32CD (=) | Cisco Catalyst 9600 Series Switches combo line card 30 ports 100/40G QSFP28 2 ports 400/200/100G QSFP-DD |
| C9600-LC-40YL4CD (=) | Cisco Catalyst 9600 Series Switches combo line card 40 ports 50/25/10GE SFP56 2 ports 100/40QSFP56 uplinks 2 ports 400/100GE QSFP-DD uplinks |
| C9600X-LC-56YL4C (=) | Cisco Catalyst 9600 Series Switches combo line card 56 ports 50/25/10GE SFP56 4 ports 100/40GE QSFP28 uplinks |
| C9600-LC-48TX (=) | Cisco Catalyst 9600 Series Switches 48-port RJ45 copper 10GE line card |
| C9610-FAN (=) | Cisco C9610 Series Smart Switches Fan Tray |
| C9610-SSD-480G-V1 (=) | Cisco C9610 Series Smart Switches 480GB SSD storage |
| C9610-SSD-960G-V1 (=) | Cisco C9610 Series Smart Switches 960GB SSD storage |
| Cisco Networking Subscription | |
| LIC-CS-CO-MO-A | Cisco Switching Advantage License Core Modular |
| LIC-CS-CO-MO-A-3Y | Cisco Switching Advantage License Core Modular 3 years |
| LIC-CS-CO-MO-A-5Y | Cisco Switching Advantage License Core Modular 5 years |
| LIC-CS-CO-MO-A-7Y | Cisco Switching Advantage License Core Modular 7 years |
| Power supplies | |
| C9600-PWR-3KWAC (=) | Cisco Catalyst 9600 Series Switches 3000W AC power supply |
| C9600-PWR-2KWAC (=) | Cisco Catalyst 9600 Series Switches 2000W AC power supply |
| C9600-PWR-2KWDC (=) | Cisco Catalyst 9600 Series Switches 2000W DC power supply |
| Spare accessories and kits | |
| C9610-LC-ADPT (=) | Cisco C9610 Series Line Card Adapter |
| C9610-SUP-BLANK (=) | Cisco C9610 Series Smart Switches blank for Supervisor slot |
| C9610-LC-BLANK (=) | Cisco C9610 Series Smart Switches blank for Line Card slot |
| C9600-PWR-BLANK (=) | Cisco C9610 Series Smart Switches blank for chassis power supply slot |
| CAB-CONSOLE-USB | Console Cable 6 ft with USB Type A and mini-B |
| CAB-CONSOLE-RJ45 | Console Cable 6 ft with RJ45 and DB9F |
| C9610-19-KIT-4= | Cisco C9610 Series Smart Switches 19" 4 post |
| C9610-23-KIT-2= | Cisco C9610 Series Smart Switches 23" 2 post |
| C9610-NEBS-KIT | Cisco C9610 Series Smart Switches NEBS kit |
| C9610-NEBSFILTER= | Cisco C9610 Series Smart Switches NEBS kit filter |
附加信息
比较Essentials和Advantage网络许可
| Features on Cisco Catalyst uplink switches | Network Essentials | Network Advantage |
| Switch fundamentals Layer 2, Static Routing, Routed Access (RIP, EIGRP Stub, OSPF -– 1000 routes), PBR, PIM Stub Multicast (1000 routes), PVLAN, VRRP, PBR, CDP, QoS, FHS, 802.1X, MACsec-128, CoPP, SXP, IP SLA Responder, SSO |
Yes | Yes |
| Advanced switch capabilities and scale EIGRP, HSRP, IS-IS, BSR, MSDP, IP SLA, OSPF BGP on C9200CX SKUs |
No | Yes |
| Network segmentation VRF, VXLAN, LISP, SGT |
No | Yes |
| Automation NETCONF, RESTCONF, YANG, PnP Agent, PnP |
Yes | Yes |
| Telemetry and visibility Model-driven telemetry, sampled NetFlow, SPAN, RSPAN |
Yes | Yes |
| IoT integration PTP on C9200CX SKUs |
No | Yes |
| Advanced security MACsec-256 on C9200CX SKUs |
No | Yes |
技术服务
南京易联科技有限公司致力于同客户一起优化过程，提供最佳解决方案。客户至上，始终负责是我们对每一位客户的承诺。
